Energy Certificates and the Blockchain Protocol

In the world of energy production, renewable energy sources, micro grids, large scale users, and other forms of electric power schemes there is a concentrated effort being placed on utilizing the Blockchain protocol.  This is because of the unique way in which a unit may be defined and tracked, similarly, can be associated to tracking quantities of value created and utilized in a complex trading scheme.

In a recent article (1) it has been reported that Jesse Morris, principal for electricity and transportation practices at RMI and co-founder of the Energy Web Foundation (EWF) received $2.5 million to develop the Blockchain protocol for energy purposes.

“We have a strong hypothesis that blockchain will solve a lot of long-running problems in the energy sector,” said Morris. “Overcoming these challenges could make small, incremental changes to energy infrastructure and markets in the near term, while others would be more far-reaching and disruptive.”

Certificates (also known as guarantees) of origin would assure the user that a particular megawatt-hour of electricity was produced from renewables. According to Morris, the U.S. alone has 10 different tracking systems, Asia-Pacific has several more, and each European country has its own system of certification. Blockchain could be used to transparently guarantee the origin of the electrons.

Longer-term, and more radically, RMI sees the future of electricity networks being driven by the billions of energy storage and HVAC units, EVs, solar roof panels and other devices and appliances at the grid edge.

Blockchains can allow any of them to set their own level of participation on the grid, without the need for an intermediary. And crucially, they can be configured so that if a grid operator needs guaranteed capacity, the grid-edge unit can communicate back to the grid whether or not it’s up to the task.

This is an example of what Morris described as blockchain’s ability to “fuse the physical with the virtual” via machine-to-machine communication.  (1)

Another example of the emergence of the usefulness and interest in the Blockchain protocol is in crowdsourcing and distributed ledger applications.

Illustration by Dan Page (2)

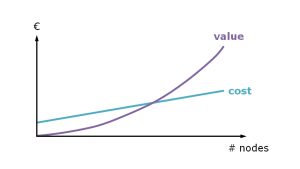

At its heart, blockchain is a self-sustaining, peer-to-peer database technology for managing and recording transactions with no central bank or clearinghouse involvement. Because blockchain verification is handled through algorithms and consensus among multiple computers, the system is presumed immune to tampering, fraud, or political control. It is designed to protect against domination of the network by any single computer or group of computers. Participants are relatively anonymous, identified only by pseudonyms, and every transaction can be relied upon. Moreover, because every core transaction is processed just once, in one shared electronic ledger, blockchain reduces the redundancy and delays that exist in today’s banking system.

Companies expressing interest in blockchain include HP, Microsoft, IBM, and Intel. In the financial-services sector, some large firms are forging partnerships with technology-focused startups to explore possibilities. For example, R3, a financial technology firm, announced in October 2015 that 25 banks had joined its consortium, which is attempting to develop a common crypto-technology-based platform. Participants include such influential banks as Citi, Bank of America, HSBC, Deutsche Bank, Morgan Stanley, UniCredit, Société Générale, Mitsubishi UFG Financial Group, National Australia Bank, and the Royal Bank of Canada. Another early experimenter is Nasdaq, whose CEO, Robert Greifeld, introduced Nasdaq Linq, a blockchain-based digital ledger for transferring shares of privately held companies, also in October 2015. (2)



References:

  1. Energy Companies look to Blockchain
  2. A Strategist’s Guide to the Blockchain

A Modern Renaissance of Electrical Power: Microgrid Technology – Part 1

NYC First Power Grid - Edison #2.png

Figure 1:  The original Edison DC microgrid in New York City, which started operation on September 4, 1882 (1)

A.  Historical Development of Electric Power in the Metropolitan City

The development of electricity for commercial, municipal and industrial use developed at a frantic pace in the mid to late 1800’s and early 1900’s.  The original distribution system consisted of copper wiring laid below the streets of New York’s east side.  The first power plants and distribution systems were small compared to today’s interconnected grids which span nations and continents.  These small “islands” of electrical power were the original microgrids.  In time they grew to become the massive infrastructure which delivers us electrical power we have become dependent upon for the operation of our modern society.

1) Let There Be Light! – Invention of the Light Bulb

When electricity first came on the scene in the 1800’s it was a relatively unknown force. Distribution systems from a central plant were a new concept originally intended to provide electric power for the newly invented incandescent light bulb.  Thomas Edison first developed a DC power electric grid to test out and prove his ideas in New York, at the Manhattan Pearl Street Station in the 1870’s.  This first “microgrid” turned out to be a formidable undertaking.

[…] Edison’s great illumination took far longer to bring about than he expected, and the project was plagued with challenges. “It was massive, all of the problems he had to solve,” says writer Jill Jonnes, author of Empires of Light: Edison, Tesla, Westinghouse, and the Race to Electrify the World, to PBS. For instance, Edison had to do the dirty work of actually convincing city officials to let him use the Lower East Side as a testing ground, which would require digging up long stretches of street to install 80,000 feet insulated copper wiring below the surface.

He also had to design all of the hardware that would go into his first power grid, including switchboards, lamps, and even the actual meters used to charge specific amounts to specific buildings. That included even the six massive steam-powered generators—each weighing 30 tons—which Edison had created to serve this unprecedented new grid, according to IEEE. As PBS explains, Edison was responsible for figuring out all sorts of operational details of the project—including a “bank of 1,000 lamps for testing the system:” (1)

Although Edison was the first to develop a small DC electrical distribution system in a city, there was competition between DC and AC power system schemes in the early years of electrical grid development.  At the same time, there were a hodge-podge of other power sources and distribution methods in the early days of modern city development.

In the 1880s, electricity competed with steam, hydraulics, and especially coal gas. Coal gas was first produced on customer’s premises but later evolved into gasification plants that enjoyed economies of scale. In the industrialized world, cities had networks of piped gas, used for lighting. But gas lamps produced poor light, wasted heat, made rooms hot and smoky, and gave off hydrogen and carbon monoxide. In the 1880s electric lighting soon became advantageous compared to gas lighting. (2)

2) Upward Growth – Elevators and Tall Buildings

Another innovation which had been developing at the same time as electrical production and distribution, was the elevator, a necessity for the development of tall buildings and eventually towers and skyscrapers .  While there are ancient references to elevating devices and lifts, the original electric elevator was first introduced in Germany in 1880 by Werner von Siemens (3).  It was necessary for upward growth in urban centers that a safe and efficient means of moving people and goods was vital for the development of tall buildings.

Later in the 1800s, with the advent of electricity, the electric motor was integrated into elevator technology by German inventor Werner von Siemens. With the motor mounted at the bottom of the cab, this design employed a gearing scheme to climb shaft walls fitted with racks. In 1887, an electric elevator was developed in Baltimore, using a revolving drum to wind the hoisting rope, but these drums could not practically be made large enough to store the long hoisting ropes that would be required by skyscrapers.

Motor technology and control methods evolved rapidly. In 1889 came the direct-connected geared electric elevator, allowing for the building of significantly taller structures. By 1903, this design had evolved into the gearless traction electric elevator, allowing hundred-plus story buildings to become possible and forever changing the urban landscape. Multi-speed motors replaced the original single-speed models to help with landing-leveling and smoother overall operation.

Electromagnet technology replaced manual rope-driven switching and braking. Push-button controls and various complex signal systems modernized the elevator even further. Safety improvements have been continual, including a notable development by Charles Otis, son of original “safety” inventor Elisha, that engaged the “safety” at any excessive speed, even if the hoisting rope remained intact. (4)

The-Story-In-Elevators-And-Escalators-274

Figure 2:  The Woolworth Building at 233 Broadway, Manhattan, New York City – The World’s Tallest Building, 1926 (5)

3) Hydroelectric A/C Power – Tesla, Westinghouse and Niagara Falls

Although Niagara Falls was not the first hydroelectric project it was by far the largest and from the massive power production capacity spawned a second Industrial Revolution.

“On September 30, 1882, the world’s first hydroelectric power plant began operation on the Fox River in Appleton, Wisconsin. […] Unlike Edison’s New York plant which used steam power to drive its generators, the Appleton plant used the natural energy of the Fox River. When the plant opened, it produced enough electricity to light Rogers’s home, the plant itself, and a nearby building. Hydroelectric power plants of today generate a lot more electricity. By the early 20th century, these plants produced a significant portion of the country’s electric energy. The cheap electricity provided by the plants spurred industrial growth in many regions of the country. To get even more power out of the flowing water, the government started building dams.” (6)


Figure 3:  The interior of Power House No. 1 of the Niagara Falls Power Company (1895-1899) (7)


Figure 4:  Adam’s power station with three Tesla AC generators at Niagara Falls, November 16, 1896. (7)

Electrical Transmission, Tesla and the Polyphase Motor

The problem of the best means of transmission, though, would be worked out not by the commission but in the natural course of things, which included great strides in the development of AC. In addition, the natural course of things included some special intervention from on high (that is, from Edison himself).

But above all, it involved Tesla, probably the only inventor ever who could be put in a class with Edison’s in terms of the number and significance of his innovations. The Croatian-born scientific mystic–he spoke of his insight into the mechanical principles of the motor as a kind of religious vision–had once worked for Edison. He had started out with the Edison Company in Paris, where his remarkable abilities were noticed by Edison’s business cohort and close friend Charles Batchelor, who encouraged Tesla to transfer to the Edison office in New York City, which he did in 1884. There Edison, too, became impressed with him after he successfully performed a number of challenging assignments. But when Tesla asked Edison to let him undertake research on AC–in particular on his concept for an AC motor–Edison rejected the idea. Not only wasn’t Edison interested in motors, he refused to have anything to do with the rival current.

So for the time being Tesla threw himself into work on DC. He told Edison he thought he could substantially improve the DC dynamo. Edison told him if he could, it would earn him a $50,000 bonus. This would have enabled Tesla to set up a laboratory of his own where he could have pursued his AC interests. By dint of extremely long hours and diligent effort, he came up with a set of some 24 designs for new equipment, which would eventually be used to replace Edison’s present equipment.

But he never found the promised $50,000 in his pay envelope. When he asked Edison about this matter, Edison told him he had been joking. “You don’t understand American humor,” he said. Deeply disappointed, Tesla quit his position with the Edison company, and with financial backers, started his own company, which enabled him to work on his AC ideas, among other obligations.

The motor Tesla patented in 1888 is known as the induction motor. It not only provided a serviceable motor for AC, but the induction motor had a distinct advantage over the DC motor. (About two-thirds of the motors in use today are induction motors.)

The idea of the induction motor is simplicity itself, based on the Faraday principle. And its simplicity is its advantage over the DC motor.

An electrical motor–whether DC or AC–is a generator in reverse. The generator operates by causing a conductor (armature) to move (rotate) in a magnetic field, producing a current in the armature. The motor operates by causing a current to flow in an armature in a magnetic field, producing rotation of the armature. A generator uses motion to produce electricity. A motor uses electricity to produce motion.

The DC motor uses commutators and brushes (a contact switching mechanism that opens and closes circuits) to change the direction of the current in the rotating armature, and thus sustain the direction of rotation and direction of current.

In the AC induction motor, the current supply to the armature is by induction from the magnetic field produced by the field current.  The induction motor thus does away with the troublesome commutators and brushes (or any other contact switching mechanism). However, in the induction motor the armature wouldn’t turn except as a result of rotation of the magnetic field, which is achieved through the use of polyphase current. The different current phases function in tandem (analogous to pedals on a bicycle) to create differently oriented magnetic fields to propel the armature.

Westinghouse bought up the patents on the Tesla motors almost immediately and set to work trying to adapt them to the single-phase system then in use. This didn’t work. So he started developing a two-phase system. But in December 1890, because of the company’s financial straits–the company had incurred large liabilities through the purchase of a number of smaller companies, and had to temporarily cut back on research and development projects–Westinghouse stopped the work on polyphase. (8)

4) The Modern Centralized Electric Power System

After the innovative technologies which allowed expansion and growth within metropolitan centers were developed there was a race to establish large power plants and distribution systems from power sources to users.  Alternating Current aka AC power was found to the preferred method of power transmission over copper wires from distant sources.  Direct Current power transmission proved problematic over distances, generated resistance heat resulting in line power losses. (9)

440px-New_York_utility_lines_in_1890

Figure 5:  New York City streets in 1890. Besides telegraph lines, multiple electric lines were required for each class of device requiring different voltages (11)

AC has a major advantage in that it is possible to transmit AC power as high voltage and convert it to low voltage to serve individual users.

From the late 1800s onward, a patchwork of AC and DC grids cropped up across the country, in direct competition with one another. Small systems were consolidated throughout the early 1900s, and local and state governments began cobbling together regulations and regulatory groups. However, even with regulations, some businessmen found ways to create elaborate and powerful monopolies. Public outrage at the subsequent costs came to a head during the Great Depression and sparked Federal regulations, as well as projects to provide electricity to rural areas, through the Tennessee Valley Authority and others.

By the 1930s regulated electric utilities became well-established, providing all three major aspects of electricity, the power plants, transmission lines, and distribution. This type of electricity system, a regulated monopoly, is called a vertically-integrated utility. Bigger transmission lines and more remote power plants were built, and transmission systems became significantly larger, crossing many miles of land and even state lines.

As electricity became more widespread, larger plants were constructed to provide more electricity, and bigger transmission lines were used to transmit electricity from farther away. In 1978 the Public Utilities Regulatory Policies Act was passed, making it possible for power plants owned by non-utilities to sell electricity too, opening the door to privatization.

By the 1990s, the Federal government was completely in support of opening access to the electricity grid to everyone, not only the vertically-integrated utilities. The vertically-integrated utilities didn’t want competition and found ways to prevent outsiders from using their transmission lines, so the government stepped in and created rules to force open access to the lines, and set the stage for Independent System Operators, not-for-profit entities that managed the transmission of electricity in different regions.

Today’s electricity grid – actually three separate grids – is extraordinarily complex as a result. From the very beginning of electricity in America, systems were varied and regionally-adapted, and it is no different today. Some states have their own independent electricity grid operators, like California and Texas. Other states are part of regional operators, like the Midwest Independent System Operator or the New England Independent System Operator. Not all regions use a system operator, and there are still municipalities that provide all aspects of electricity. (10)




Figure 6:  Diagram of a modern electric power system (11)

A Brief History of Electrical Transmission Development

The first transmission of three-phase alternating current using high voltage took place in 1891 during the international electricity exhibition in Frankfurt. A 15,000 V transmission line, approximately 175 km long, connected Lauffen on the Neckar and Frankfurt.[6][12]

Voltages used for electric power transmission increased throughout the 20th century. By 1914, fifty-five transmission systems each operating at more than 70,000 V were in service. The highest voltage then used was 150,000 V.[13] By allowing multiple generating plants to be interconnected over a wide area, electricity production cost was reduced. The most efficient available plants could be used to supply the varying loads during the day. Reliability was improved and capital investment cost was reduced, since stand-by generating capacity could be shared over many more customers and a wider geographic area. Remote and low-cost sources of energy, such as hydroelectric power or mine-mouth coal, could be exploited to lower energy production cost.[3][6]

The rapid industrialization in the 20th century made electrical transmission lines and grids a critical infrastructure item in most industrialized nations. The interconnection of local generation plants and small distribution networks was greatly spurred by the requirements of World War I, with large electrical generating plants built by governments to provide power to munitions factories. Later these generating plants were connected to supply civil loads through long-distance transmission. (11)



To be continued in Part 2:  Distributed Generation and The Microgrid Revolution



References:

  1. The Forgotten Story Of NYC’s First Power Grid  by Kelsey Campbell-Dollaghan
  2. The Electrical Grid – Wikipedia
  3. The History of the Elevator – Wikipedia
  4. Elevator History – Columbia Elevator
  5. The History of Elevators and Escalators – The Wonder Book Of Knowledge | by Henry Chase (1921)
  6. The World’s First Hydroelectric Power Station
  7. Tesla Memorial Society of New York Website
  8. The Day They Turned The Falls On: The Invention Of The Universal Electrical Power System by Jack Foran
  9. How electricity grew up? A brief history of the electrical grid
  10. The electricity grid: A history
  11. Electric power transmission

Hybrid Electric Buildings; A New Frontier for Energy and Grids

.OneMaritimePlaza-300x225 PeakerPlantSanFranHybrid Electric Buildings are the latest in developments for packaged energy storage in buildings which offer several advantages including long-term operational cost savings. These buildings have the flexibility to combine several technologies and energy sources in with a large-scale integrated electric battery system to operate in a cost-effective manner.

San Francisco’s landmark skyscraper, One Maritime Plaza, will become the city’s first Hybrid Electric Building using Tesla Powerpack batteries. The groundbreaking technology upgrade by Advanced Microgrid Solutions (AMS) will lower costs, increase grid and building resiliency, and reduce the building’s demand for electricity from the sources that most negatively impact the environment.

Building owner Morgan Stanley Real Estate Investing hired San Francisco-based AMS to design, build, and operate the project. The 500 kilowatt/1,000 kilowatt-hour indoor battery system will provide One Maritime Plaza with the ability to store clean energy and control demand from the electric grid. The technology enables the building to shift from grid to battery power to conserve electricity in the same way a hybrid-electric car conserves gasoline. (1)

In addition to storage solutions these buildings can offer significant roof area to install solar panel modules and arrays to generate power during the day.  Areas where sunshine is plentiful and electricity rates are high, solar PV and storage combinations for commercial installations are economically attractive.

For utility management, these systems are ideal in expansion of the overall grid, as more micro-grids attach to the utility infrastructure overall supply and resiliency is improved.

In recent developments AMS has partnered with retailer Wal-Mart to provide on-site and “behind the meter” energy storage solutions for no upfront costs.


Figure 2.  Solar Panels on Roof of Wal-Mart, Corporate Headquarters, Puerto Rico (3)

On Tuesday, the San Francisco-based startup announced it is working with the retail giant to install behind-the-meter batteries at stores to balance on-site energy and provide megawatts of flexibility to utilities, starting with 40 megawatt-hours of projects at 27 Southern California locations.

Under the terms of the deal, “AMS will design, install and operate advanced energy storage systems” at the stores for no upfront cost, while providing grid services and on-site energy savings. The financing was made possible by partners such as Macquarie Capital, which pledged $200 million to the startup’s pipeline last year.

For Wal-Mart, the systems bring the ability to shave expensive peaks, smooth out imbalances in on-site generation and consumption, and help it meet a goal of powering half of its operations with renewable energy by 2025. Advanced Microgrid Solutions will manage its batteries in conjunction with building load — as well as on-site solar or other generation — to create what it calls a “hybrid electric building” able to keep its own energy costs to a minimum, while retaining flexibility for utility needs.

The utility in this case is Southern California Edison, a long-time AMS partner, which “will be able to tap into these advanced energy storage systems to reduce demand on the grid as part of SCE’s groundbreaking grid modernization project,” according to Tuesday’s statement. This references the utility’s multibillion-dollar grid modernization plan, which is now before state regulators.  (2)

References:

  1. San Francisco’s First Hybrid Electric Building – Facility Executive, June 28, 2016
    https://facilityexecutive.com/2016/06/skyscraper-will-be-san-franciscos-first-hybrid-electric-building/

  2. Wal-Mart, Advanced Microgrid Solutions to Turn Big-Box Stores Into Hybrid Electric Buildings, GreenTech Media, April 11, 2017  https://www.greentechmedia.com/articles/read/wal-mart-to-turn-big-box-stores-into-hybrid-electric-buildings?utm_source=Daily&utm_medium=Newsletter&utm_campaign=GTMDaily

  3. Solar Panels on Wal-Mart Roof  http://corporate.walmart.com/_news_/photos/solar-panels-roof-puerto-rico

Energy Efficiency Financing for Existing Buildings in California

Much of our efforts to reduce carbon emissions involves fairly complicated and advanced technologies. Whether it’s solar panels, batteries, flywheels, or fuel cells, these technologies have typically required public support to bring them to scale at a reasonable price, along with significant regulatory or legal reforms to accommodate these new ways of doing old things, […]

To recommend policies to boost this capital market financing for energy retrofits, UC Berkeley and UCLA Law are today releasing a new report “Powering the Savings:How California Can Tap the Energy Efficiency Potential in Existing Commercial Buildings.” The report is the 17th in the two law schools’ Climate Change and Business Research Initiative, generously supported by Bank of America since 2009.

The report describes ways that California could unlock more private investment in energy efficiency retrofits, particularly in commercial buildings.  This financing will flow if there’s a predictable, long-term, measured and verified amount of savings that can be directly traced to energy efficiency measures.  New software and methodologies can now more accurately perform this task.  They establish a building’s energy performance baseline, calibrating for a variety of factors, such as weather, building use, and occupancy changes.  That calibrated or “dynamic” baseline can then form the basis for calculating the energy savings that occur due specifically to efficiency improvements.

But the state currently lacks a uniform, state-sanctioned methodology and technology standard, so utilities are reluctant to base efficiency incentives or programs without regulatory approval to use these new methods.  The report therefore recommends that energy regulators encourage utilities to develop aggressive projects based on these emerging metering technologies that can ultimately inform a standard measurement process and catalyze “pay-for-performance” energy efficiency financing, with utilities able to procure energy efficiency savings just like they were a traditional generation resource. […]

via Solving The Energy Efficiency Puzzle — Legal Planet

The Power of the Smart Campus

Smart campus technologies harness the potential to advance everything from productivity to security measures to the operations of the buildings in which students live and study. The United States a…

Source: The Power of the Smart Campus

The Smart Grid – Modern Electrical Infrastructure

When we talk about the emerging Smart Grid there comes with the topic an array of exciting and new technologies; Micro-Grids, Distributed Generation, Smart Meters, Load Shifting, Demand Response, Electric Vehicles with Battery Storage for Demand Response, and more.  Recent development in Renewable Energy sources has been driven by concerns over Climate Change, allowing for unprecedented growth in residential and commercial PV Solar Panel installations.


Figure 1:  Redwood High School in Larkspur, CA installed a 705kW SunPower system that’s projected to save $250,000 annually. The carports include EV charging stations for four cars. (1)

Climate Change and burning of fossil fuels are hot topics in the world. Most recently the city of San Francisco has mandated the installation of solar panels on all new buildings constructed under 10 storeys, which will come into effect in 2017 as a measure to reduce carbon emissions.  Currently all new buildings in California are required to set aside 15% of roof area for solar. (2)

“Under existing state law, California’s Title 24 Energy Standards require 15% of roof area on new small and mid-sized buildings to be “solar ready,” which means the roof is unshaded by the proposed building itself, and free of obtrusions. This state law applies to all new residential and commercial buildings of 10 floors or less.

Supervisor Wiener’s ordinance builds on this state law by requiring this 15% of “solar ready” roof area to have solar actually installed. This can take the form of either solar photovoltaic or solar water panels, both of which supply 100% renewable energy.” (3)

Weather and Aging Infrastructure:

Despite an increasing abundance of energy-efficient buildings and other measures, electricity demand has risen by around 10% over the last decade, partly driven by the massive growth of digital device usage and the expanding demand for air conditioning, as summers continue to get hotter in many states.

According to 2013 data from the Department of Energy (DOE), US power grid outages have risen by 285% since records on blackouts began in 1984, for the most part driven by the grid’s vulnerability to unusual and extreme weather events – such as the devastating Hurricane Sandy in 2012 that caused extensive power outages across the East Coast – which are becoming less unusual as the years roll on.

“We used to have two to five major weather events per year from the 50s to the 80s,” said University of Minnesota Professor of Electrical and Computer Engineering Massoud Amin in a 2014 interview with the International Business Times.

“Between 2008 and 2012, major outages caused by weather increased to 70 to 130 outages per year. Weather used to account for about 17% to 21% of all root causes. Now, in the last five years, it’s accounting for 68% to 73% of all major outages.” (4)

How is the Smart Grid so different from the traditional electrical grid?

The established model of providing power to consumers involves the supply of electricity generated from a distant source and transmitted at high voltage to sub-stations local to the consumer, refer to Figure 2.  The power plants that generate the electricity are mostly thermo-electric (coal, gas and nuclear power), with some hydro-electric sources (dams and reservoirs) and most recently wind farms and large solar installations.

“The national power grid that keeps America’s lights on is a massive and immensely valuable asset. Built in the decades after the Second World War and valued today at around $876bn, the country’s grid system as a whole connects electricity from thousands of power plants to 150 million customers through more than five million miles of power lines and around 3,300 utility companies.” (4)

power_fig1 Old Grid Model.gif

Figure 2:  Existing Transmission and Distribution Grid Structure within the Power Industry (5)

The (Transmission & Distribution) market supplies equipment, services and production systems for energy markets. The initial stage in the process is converting power from a generation source (coal, nuclear, wind, etc.) into a high voltage electrical format that can be transported using the power grid, either overhead or underground. This “transformation” occurs very close to the source of the power generation.

The second stage occurs when this high-voltage power is “stepped-down” by the use of switching gears and then controlled by using circuit breakers and arresters to protect against surges. This medium voltage electrical power can then be safely distributed to urban or populated areas.

The final stage involves stepping the power down to useable voltage for the commercial or residential customer.  In short, while power generation relates to the installed capacity to produce energy from an organic or natural resource, the T&D space involves the follow up “post-power generation production” as systems and grids are put in place to transport this power to end users. (5)

The Smart Grid is an evolution in multiple technologies which in cases is overlaying or emerging from the existing grid.  New generating facilities such as wind power or solar installations which may be small or local to a municipal or industrial user are being tied into the existing grid infra-structure.  In some cases residential PV Solar systems are being tied into the Grid with some form of agreement to purchase excess energy, in some cases at rates favorable to the installer, depending on the utility and region.

Another characteristic of the evolving Smart Grid is in communication technology and scalability.  Use of wifi protocols for communication between parts of the system allow for new processes and access to resources which were previously unavailable.  Ability to control systems to defer demand to non-peak hours within a building as one example.

Microgrids, smaller autonomous systems servicing a campus of buildings or larger industry,  may plug into a larger City-wide Smart Grid in a modular manner.  In the event of a catastrophic event such as a hurricane or earthquake the Smart Grid offers users resiliency through multiple sources of energy supply.

Distributed Generation includes a number of different and smaller scale energy sources into the mix.  The newer, small scale Renewable Energy projects which are being tied to the electrical grid as well as other technologies such as Co-Generation, Waste To Energy facilities, Landfill Gas Systems, Geothermal and the like.  As growth continues there needs to be ways to control and manage these multiple energy sources into the grid.  Also increased needs to maintain privacy, isolate and control systems, and prevent unauthorized access and control.  This is leading to growth in  Energy Management and Security Systems.

ARES-rail-train

Figure 3:  An artist’s rendering of the massive rail used in the ARES power storage project to store renewable energy as gravitational potential energy. Source: ARES North America (6)

Energy Storage is emerging as necessary in the Smart Grid due to fluctuations in source supply of energy, especially Solar and Wind Power, and the intermittent and cyclical nature of user demand.   The existing grid does not have the need for energy storage systems as energy sources were traditionally large power stations which generally responded to anticipated need during the course of the day.

As more Renewable Energy systems go online the need for storage will grow.  Energy Storage in its various forms will also enable Load Shifting or Peak Shaving strategies for economic gains in user operations.  These strategies are already becoming commercially available for buildings to save the facility operators rate charges by limiting demand during peak periods at higher utility rates.


Figure 4:  Effect of Peak Shaving using Energy Storage  (6)

Peak-load shifting is the process of mitigating the effects of large energy load blocks during a period of time by advancing or delaying their effects until the power supply system can readily accept additional load. The traditional intent behind this process is to minimize generation capacity requirements by regulating load flow. If the loads themselves cannot be regulated, this must be accomplished by implementing energy storage systems (ESSs) to shift the load profile as seen by the generators (see Figure 4).

Depending on the application, peak-load shifting can be referred to as “peak shaving” or “peak smoothing.” The ESS is charged while the electrical supply system is powering minimal load and the cost of electric usage is reduced, such as at night. It is then discharged to provide additional power during periods of increased loading, while costs for using electricity are increased. This technique can be employed to mitigate utility bills. It also effectively shifts the impact of the load on the system, minimizing the generation capacity required. (6)

Challenges with chemical storage systems such as batteries are scale and cost.  Currently pumped hydro is the predominant method of storing energy from intermittent sources providing 99% of global energy storage. (7)

inline_demandresponse

Figure 5:  Actual Savings accrued due to Demand Response Program  (8)

Demand Response (DR) is another technology getting traction in the Smart Grid economy. As previously mentioned Energy Management and Security Systems are “…converging with Energy Storage technology to make DR a hot topic.  First, the tools necessary to determine where energy is being stored, where it is needed and when to deliver it is have developed over decades in the telecommunications sector.  Secondly, the more recent rush of advanced battery research is making it possible to store energy and provide the flexibility necessary for demand response to really work. Mix that with the growing ability to generate energy on premises through solar, wind and other methods (Distributed Generation) and a potent new distributed structure is created.” (9)

Demand response programs provide financial incentives to reduce energy consumption during peak periods of energy demand. As utilities and independent system operators (ISOs) are pressured to keep costs down and find ways to get as many miles as they can out of every kilowatt, demand response programs have gained popularity. (8)

VirtualPowerPlant#1

Figure 6:  The Demonstration Project 2’s Virtual Power Plant (10)

Virtual Power Plant: When an increasing share of energy is produced by renewable sources such as solar and wind, electricity production can fluctuate significantly. In the future there will be a need for services which can help balance power systems in excess of what conventional assets will be able to provide. Virtual power plants (VPPs) are one of the most promising new technologies that can deliver the necessary stabilising services.  (11)

In the VPP model an energy aggregator gathers a portfolio of smaller generators and operates them as a unified and flexible resource on the energy market or sells their power as system reserve.

VPPs are designed to maximize asset owners’ profits while also balancing the grid. They can match load fluctuations through forecasting, advance metering and computerized control, and can perform real-time optimization of energy resources.

“Virtual power plants essentially represent an ‘Internet of Energy,’ tapping existing grid networks to tailor electricity supply and demand services for a customer,” said Navigant senior analyst Peter Asmus in a market report. The VPP market will grow from less than US $1 billion per year in 2013 to $3.6 billion per year by 2020, according to Navigant’s research — and one reason is that with more variable renewables on the grid flexibility and demand response are becoming more crucial.  (12)


Figure 7:   Example of a Microgrid System With Loads, Generation, Storage and Coupling to a Utility Grid (13)

Microgrids:  Microgrids are localized grids that can disconnect from the traditional grid to operate autonomously and help mitigate grid disturbances to strengthen grid resilience (14).  The structure of a microgrid is a smaller version of the smart grid formed in a recursive  hierarchy where multiple local microgrids may interconnect to form the larger smart grid which services a region or community.

Summary:

The convergence of aging existing infrastructure, continued growth in populations and electrical demand and concerns over climate change have lead to the emerging smart grid and it’s array of new technologies.  This trend is expected to continue as new growth and replacement will be necessary for an aging electrical grid system, from the larger scope transmission systems and utilities, to smaller scale microgrids.  These systems will become integrated and modular, almost plug-and-play, with inter-connectivity and control through wireless internet protocols.

References:

  1. https://cleanpowermarketinggroup.com/category/blog/
  2. http://www.npr.org/sections/thetwo-way/2016/04/20/474969107/san-francisco-requires-new-buildings-to-install-solar-panels
  3. https://medium.com/@Scott_Wiener/press-release-board-of-supervisors-unanimously-passes-supervisor-wiener-s-legislation-to-require-693deb9c2369#.3913ug8ph
  4. http://www.power-technology.com/features/featureupgrading-the-us-power-grid-for-the-21st-century-4866973/
  5. http://www.incontext.indiana.edu/2010/july-aug/article3.asp
  6. http://www.csemag.com/single-article/implementing-energy-storage-for-peak-load-shifting/95b3d2a5db6725428142c5a605ac6d89.html
  7. http://www.forbes.com/sites/jamesconca/2016/05/26/batteries-or-train-pumped-energy-for-grid-scale-power-storage/#30b5b497de55
  8. http://www.summitenergygps.com/optimize-rebates-incentives-credits.html
  9. https://duanetilden.com/2015/12/26/demand-response-energy-distribution-a-technological-revolution/
  10. https://hub.globalccsinstitute.com/publications/twenties-project-final-report-short-version/demonstration-project-2-large-scale-virtual-power-plant-integration-derint
  11. http://energy.gov/oe/services/technology-development/smart-grid/role-microgrids-helping-advance-nation-s-energy-system
  12. http://www.renewableenergyworld.com/articles/print/volume-16/issue-5/solar-energy/virtual-power-plants-a-new-model-for-renewables-integration.html
  13. http://w3.usa.siemens.com/smartgrid/us/en/microgrid/pages/microgrids.aspx
  14. http://energy.gov/oe/services/technology-development/smart-grid/role-microgrids-helping-advance-nation-s-energy-system

Related Blog Posts:

Other Related Articles and Websites:

DOE’s 3 Year $220M Grid Modernization Plan

With 88 projects from coast to coast, it might be the biggest grid edge R&D effort ever. Here’s how the money is going to be spent.

Sourced through Scoop.it from: www.greentechmedia.com

“[…] The Grid Modernization Multi-Year Program Plan will bring a consortium of 14 national laboratories together with more than 100 companies, utilities, research organizations, state regulators and regional grid operators. The scope of this work includes integrating renewable energy, energy storage and smart building technologies at the edges of the grid network, at a much greater scale than is done today.

That will require a complicated mix of customer-owned and utility-controlled technology, all of which must be secured against cyberattacks and extreme weather events. And at some point, all of this new technology will need to become part of how utilities, grid operators, regulators, ratepayers and new energy services providers manage the economics of the grid.

DOE has already started releasing funds to 10 “pioneer regional partnerships,” or “early-stage, public-private collaborative projects […]  The projects range from remote microgrids in Alaska and grid resiliency in New Orleans, to renewable energy integration in Vermont and Hawaii, and scaling up to statewide energy regulatory overhauls in California and New York. Others are providing software simulation capabilities to utilities and grid operators around the country, or looking at ways to tie the country’s massive eastern and western grids into a more secure and efficient whole.

Another six “core” projects are working on more central issues, like creating the “fundamental knowledge, metrics and tools we’re going to need to establish the foundation of this effort,” he said (David Danielson).  Those include technology architecture and interoperability, device testing and validation, setting values for different grid services that integrated distributed energy resources (DERs) can provide, and coming up with the right sensor and control strategy to balance costs and complexity.

Finally, the DOE has identified six “cross-cutting” technology areas that it wants to support, Patricia Hoffman, assistant secretary of DOE’s Office of Electricity Delivery and Energy Reliability, noted in last week’s conference call. Those include device and integrated system testing, sensing and measurement, system operations and controls, design and planning tools, security and resilience, and institutional support for the utilities, state regulators and regional grid operators that will be the entities that end up deploying this technology at scale.

Much of the work is being driven by the power grid modernization needs laid out in DOE’s Quadrennial Energy Review, which called for $3.5 billion in new spending to modernize and strengthen the country’s power grid, while the Quadrennial Technology Review brought cybersecurity and interoperability concerns to bear.[…]

DOE will hold six regional workshops over the coming months to provide more details, Danielson said. We’ve already seen one come out this week — the $18 million in SunShot grants for six projects testing out ways to bring storage-backed solar power to the grid at a cost of less than 14 cents per kilowatt-hour.

“We can’t look at one attribute of the grid at a time,” he said. “We’re not just looking for a secure grid — we’re looking for an affordable grid, a sustainable grid, a resilient grid.” And one that can foster renewable energy and greenhouse gas reduction at the state-by-state and national levels. […]

See on Scoop.itGreen Energy Technologies & Development

Energy Storage Compared to Conventional Resources Using LCOE Analysis

In its first analysis of the levelized cost of storage, Lazard finds some promising economic trends.

Sourced through Scoop.it from: www.greentechmedia.com

“[…] “Although in its formative stages, the energy storage industry appears to be at an inflection point, much like that experienced by the renewable energy industry around the time we created the LCOE study eight years ago,” said George Bilicic, the head of Lazard’s energy and infrastructure group, in a release about the report.

Lazard modeled a bunch of different use cases for storage in front of the meter (replacing peaker plants, grid balancing, and equipment upgrade deferrals) and behind the meter (demand charge reduction, microgrid support, solar integration). It also modeled eight different technologies, ranging from compressed-air energy storage to lithium-ion batteries.

“As a first iteration, Lazard has captured the complexity of valuating storage costs pretty well. Unlike with solar or other generation technologies, storage cost analysis needs to account for not just different technologies, but also location and application, essentially creating a three-dimensional grid,” said Ravi Manghani, GTM Research’s senior storage analyst.

In select cases, assuming best-case capital costs and performance, a handful of storage technologies rival conventional alternatives on an unsubsidized basis in front of the meter. Using lithium-ion batteries for frequency regulation is one example. Deploying pumped hydro to integrate renewables into the transmission system is another.  […]

See on Scoop.itGreen Energy Technologies & Development

Demand Response Energy Distribution a Technological Revolution

Demand response (DR) energy distribution appears to be gaining momentum in the United States and elsewhere. In the U.S., however, the DR sector is awaiting a Supreme Court decision that will have great impact on the evolution of the technology, administrative and business models.

Sourced through Scoop.it from: www.energymanagertoday.com

“[…] A lot is going on besides the Supreme Court case, however. Technology evolutions in two discreet areas are converging to make DR a hot topic. The tools necessary to determine where energy is being stored, where it is needed and when to deliver it is have developed over decades in the telecommunications sector. Secondly, the more recent rush of advanced battery research is making it possible to store energy and provide the flexibility necessary for demand response to really work. Mix that with the growing ability to generate energy on premises through solar, wind and other methods and a potent new distributed structure is created.

In October, Advanced Energy Economy (AEE) released a report entitled “Peak Demand Reduction Strategy,” which was prepared for it by Navigant Research. The research found that the upside is high. For instance, for every $1 spent on reducing peak demand, savings of $2.62 and $3.26 or more can be expected in Illinois and Massachusetts, respectively. The most progress has been made in the United States, the report found. Last year, the U.S. accounted for $1.25 billion of the total worldwide $2 billion demand response market, according to JR Tolbert, the AEE’s Senior Director of State Policy. The U.S. market, he wrote in response to questions emailed by Energy Manager Today, grew 14 percent last year compared to 2013.

The report painted a bright picture for the future of demand response. “The key takeaway from this report is that by passing peak demand reduction mandates into law, or creating peak demand reduction programs, policy makers and utilities could significantly reduce costs for ratepayers, strengthen reliability of the electricity system, and facilitate compliance with the Clean Power Plan,” Tolbert wrote. “As states plan for their energy future, demand response should be a go-to option for legislators and regulators.” […]”

See on Scoop.itGreen & Sustainable News

Electric Vehicles Future Threatens OPEC

The oil cartel is living in a time-warp, seemingly unaware that global energy politics have changed forever

Sourced through Scoop.it from: www.telegraph.co.uk

“…OPEC says battery costs may fall by 30-50pc over the next quarter century but doubts that this will be enough to make much difference, due to “consumer resistance”.

This is a brave call given that Apple and Google have thrown their vast resources into the race for plug-in vehicles, and Tesla’s Model 3s will be on the market by 2017 for around $35,000.

Ford has just announced that it will invest $4.5bn in electric and hybrid cars, with 13 models for sale by 2020. Volkswagen is to unveil its “completely new concept car” next month, promising a new era of “affordable long-distance electromobility.”

The OPEC report is equally dismissive of Toyota’s decision to bet its future on hydrogen fuel cars, starting with the Mirai as a loss-leader. One should have thought that a decision by the world’s biggest car company to end all production of petrol and diesel cars by 2050 might be a wake-up call.

Goldman Sachs expects ‘grid-connected vehicles’ to capture 22pc of the global market within a decade, with sales of 25m a year, and by then – it says – the auto giants will think twice before investing any more money in the internal combustion engine. Once critical mass is reached, it is not hard to imagine a wholesale shift to electrification in the 2030s.  […]

A team of Cambridge chemists says it has cracked the technology of a lithium-air battery with 90pc efficiency, able to power a car from London to Edinburgh on a single charge. It promises to cut costs by four-fifths, and could be on the road within a decade.

There is now a global race to win the battery prize. The US Department of Energy is funding a project by the universities of Michigan, Stanford, and Chicago, in concert with the Argonne and Lawrence Berkeley national laboratories. The Japan Science and Technology Agency has its own project in Osaka. South Korea and China are mobilising their research centres.

A regulatory squeeze is quickly changing the rules of global energy.The Grantham Institute at the London School of Economics counts 800 policies and laws aimed at curbing emissions worldwide.

Goldman Sachs says the model to watch is Norway, where electric vehicles already command 16.3pc of the market. The switch has been driven by tax exemptions, priority use of traffic lanes, and a forest of charging stations.

California is following suit. It has a mandatory 22pc target for ‘grid-connected’ vehicles within ten years. New cars in China will have to meet emission standards of 5 litres per 100km by 2020, even stricter than in Europe. […]

In the meantime, OPEC revenues have crashed from $1.2 trillion in 2012 to nearer $400bn at today’s Brent price of $36.75, with fiscal and regime pain to match.

This policy has eroded global spare capacity to a wafer-thin 1.5m b/d, leaving the world vulnerable to a future shock. It implies a far more volatile market in which prices gyrate wildly, eroding confidence in oil as a reliable source of energy.

The more that this Saudi policy succeeds, the quicker the world will adopt policies to break reliance on its only product. As internal critics in Riyadh keep grumbling, the strategy is suicide.

Saudi Arabia and the Gulf states are lucky. They have been warned in advance that OPEC faces slow-run off. The cartel has 25 years to prepare for a new order that will require far less oil.

If they have any planning sense, they will manage the market to ensure crude prices of $70 to $80. They will eke out their revenues long enough to control spending and train their people for a post-petrol economy, rather than clinging to 20th Century illusions.

Sheikh Ahmed Zaki Yamani, the former Saudi oil minister, warned in aninterview with the Telegraph fifteen years ago that this moment of reckoning was coming and he specifically cited fuel-cell technologies.

“Thirty years from now there will be a huge amount of oil – and no buyers. Oil will be left in the ground. The Stone Age came to an end, not because we had a lack of stones.”

They did not listen to him then, and they are not listening now.”

See on Scoop.itGreen Energy Technologies & Development
