Using Building Air Conditioning Systems For Carbon Capture and Synthetic Fuels

Posted on by
Reply

There have been many global developments on the science of CO2 recovery from the atmosphere. Existing and future buildings use A/C systems for temperature control of ventilation systems. Large buildings move massive amounts of air during the course of a day.

At design rates of 10 to 20 cfm (cubic feet/minute) per person large assemblies or office towers rates of ventilation can reach up to 100,000 cfm or more per building. This air is required to be temperature controlled, which is achieved by air conditioning units, which extract heat energy from the air stream and reject this heat to the outside (a heat pump can also operate in reverse mode, heating the inside air stream and absorbing heat from the outside air).

The fan motors used to move the conditioned air consumes considerable electricity to operate as do the outside air fans used to cool the A/C system. The outside cooling (heating) loop is operated by forcing air through fin-tube radiators which contain pressurized refrigerant circulating in a closed loop cycle.

Calgary-based Carbon Engineering’s first direct air capture plant in Squamish, B.C. David Keith, the founder of Carbon Engineering, thinks the idea of AC integrated carbon capture systems is attractive, but may not be practical because of economies of scale. (THE CANADIAN PRESS/Darryl Dyck) (1)

It has been proposed to incorporate carbon capture and sequestration in these systems and create a new, clean energy source which can be re-introduced to the economy as a fuel and material feed-stock for a variety of industries.

However, the process is not without certain drawbacks. One major hurdle is finding the additional energy required to further process the captured CO2 into a viable fuel. The process requires electrolysis of water and other energy inputs to refine the captured carbon. It is proposed that PV Cells would be a good energy source for the process.

“[…] In a new analysis, scientists argue for using air conditioning units to capture carbon dioxide straight from the atmosphere and transform it into fuel. The idea is that these renewable-energy powered devices would lower atmospheric CO2 and provide a scalable alternative to oil, natural gas and other fossil fuels.

The conversion tech would first take in CO2 and water from the air. Then, an electric current would split the water into hydrogen and oxygen. Finally, combining the hydrogen with the captured CO2 would produce hydrocarbon fuel.

It’s all theoretical for now, but the technology for each step of the process already exists. Companies like Climeworks in Switzerland, Siemens AG in Germany and Green Energy in the US, have commercialized technologies that separately capture CO2 directly from the air, isolate hydrogen from water and produce fuels. But a complete system that puts all of the pieces together, is lacking. The fact that the components are available, however, means “it would be not that difficult technically to add a CO2 capture functionality to an A/C system,” the authors write.

If air conditioners were equipped with the appropriate technologies, the researchers calculate Fair Tower, a landmark office building in downtown Frankfurt am Main in Germany, could produce 550 to 1,100 pounds of liquid hydrocarbon fuels every hour, or about 2,200 to 44,00 tons per year. When the researchers extrapolated on this calculation they found the five cities in Germany with the largest office space could together produce 2.6 to 5.3 million tons of fuel each year, the team reports Tuesday in the journal Nature Communications. […]” (2)

  1. https://www.cbc.ca/radio/quirks/may-4-2019-brain-resuscitation-hippos-supply-algae-skeletons-slug-surgical-glue-and-more-1.5119885/how-air-conditioners-could-keep-you-cool-and-capture-carbon-1.5119911
  2. http://blogs.discovermagazine.com/d-brief/2019/04/30/could-air-conditioners-convert-atmospheric-co2-to-fuel/#

Renewable Energy and Heat Pumps – Net Zero Energy by Design

Posted on by
Reply

As a mechanical engineer I spent 17 years in design of mechanical systems. Always seeking the best solution given budgets and adhering to efficient design principles. Often we can combine systems by hybridization, where two technologies come together in a synergistic match. I have used hybrid technologies, using ground loops and air-air fluid coolers, with heat pumps successfully in the mechanical design and construction of a number of buildings.

While wind energy may be harvested, it is not always available. Some regions get more wind than others, and there may be governmental or civic restrictions. For renewable energy, solar may be a better option than wind, even though it is only available during the day. In either case some form of auxiliary power will be required, such as batteries,  grid connection, fuel powered generator, or hydro-power.

The use of heat pumps allows for the provision of a number of heating and cooling devices which may be connected to a central circulating building loop. As heat pumps have operating temperatures generally between 40F to 90F, although it may vary depending on heat energy source, such as air, water or ground.  Air temperatures may vary during the day and season. As air temperature drops, heat pumps lose efficiency. We can see this in the following figure. (1)

air-source-heat-pumps-cold-weather

In the case of geothermal heat pump system design, there are some options. One method is to run a water source such as a pond, river, body of water in an open loop design,  in a closed loop method using an process waste heat stream or ground coupled system. Either system is usually connected to a heat-exchanger to which is connected a second closed house loop. The house loop is controlled to either discharge or gain heat from the geothermal loop.

I am attaching  a blog post (2) from 2007 where I made a comment in 2009. This blog post is still getting comments. I believe such systems can be designed and constructed and would contribute to a “Net-Zero” building systems.

I am a lawyer who has been interested in the subject of energy conservation since the seventies. Back when we had the first OPEC crisis, I thought this country would head in a direction away from the consumption of huge quantities of oil and gas. It didn’t happen. Now of course, our thirst for oil has been the primary reason for a preemptive war with no end in sight. Moreover, peak oil seems to be here. And so far nothing much seems to have changed. But the public, may at last be ready for something different.

There are some real promising things happening with new solar energy systems and with wind turbines. It is long past due. But I still keep wondering whether we are approaching this problem of solving our energy demands the right way. With both solar and wind systems all technology seems to be headed toward the creation of electricity. Electricity is definitely useful but often inefficient.

Heating and cooling costs are about 60-70 percent of home energy costs. It is far more cost effective to use heat transfer than to make heat. Water source heat pumps are 300-400 percent efficient while the best ordinary HVAC systems might be forty percent efficient. (Are they that much?) What if you could even vastly surpass the efficiency of a water source heat pump. How? By making the wind pump the water instead of an electric pump.

Why not use wind to its best advantage? Make the wind do what it has done very efficiently for hundreds of years: pump water. Make it pump water from a warm place to a cold place and make it store the heat where the heat is needed or wanted. In the winter pump the heat from under the ground into the house. In the summer pump the heat from house into the ground.

To do this, because of the wind’s variability, one would need a huge (?) thermal sink in the house to slowly release the heat transferred from underground to the heat sink or to transfer the heat from the house to the ground while the wind was not blowing.

A four part system. A wind turbine. A pump. A closed loop of pipe. An interior thermal sink.

It is fairly well known that in most climates, five or six feet below ground, the temperature is a about 55 degrees. I think it is quite possible to take advantage of the geothermal underground temperature by using a wind turbine to pump water from underground into an interior thermal sink. If a large enough volume of water could be circulated to where the interior heat sink reached 55 degrees, I think such a home’s heating and cooling costs would be drastically reduced.

If the large thermal sink could get the house temperature substantially raised in the winter and substantially cooled in the summer, very little additional energy might be required to bring it to a desirable temperature with the use of a water source heat pump. A water source heat pump would work in tandem very well by using the internal heat sink as a convenient source to operate a water source heat pump.

My idea would be to use a vertical wind turbine on the roof coupled to an Archimedes screw to pumps and circulates water through the closed loop. The vertical wind turbines seem to need less wind, have more torque, and are quieter. I also think that from an architectural point of view, they would look much more attractive, especially the ones that look like spinnerets. They also take advantage of a sloping roof which increases wind speed.

I also think the Archimedes screw would be an ideal pump. It requires no gears or lubrication and could attach by a straight shaft to the vertical wind turbine. An Archimedes screw would be very inexpensive as pumping systems go and extremely reliable as there is really nothing to break.

I have other ideas about roof design and about turbine design for greater efficiency. I also have ideas about the plumbing. What I would like to see is whether there are people out there who think this idea has commercial merit and if so, how we might go about making wind driven water pumping for geothermal transfer a success. We would need some engineering and architectural expertise and some ability to fabricate the wind turbines and pumps.

I look forward to responses.

POSTED BY AT 3:34 PM

Duane Tilden said…

I have been looking at the latest responses and it seems to me there is some confusion about this idea.

Firstly, heat pump technology, as pointed out achieves it’s high COP’s from the phase change. It is through the leveraging of the refrigerant phase change from a fluid to the gas phase where heat energy can be obtained from low temperature heat sources. This is how geothermal heat pumps can obtain heat energy from relatively low temp sources such as the ground where nominal ambient water temp would be at 55F and deliver hot water at temps of 90F to 140F.

Alternatively heat pumps can be used in air/air, air/water, water/air and water/water configurations. These are generally stand alone devices where in a properly engineered installation do not require supplemental heat sources.

Wind energy is a separate sustainable, environmentally friendly application. In my opinion the OP’s idea of using wind energy to move water around for a heat pump application is marginal and likely too capital intensive to realize any real benefit. Also, it is just too restrictive, in my opinion.

Wind energy converted directly to electricity, or other dedicated pumping applications where electricity is not available is best (water pumping up to a reservoir in agricultural or power generation schemes for example). There also may be some merit to the idea of storing the energy as compressed air, but the amount of heat generated would not be significant, usable heat source. Try heating your home with a candle.

Electricity is used by a wide range of applications, so why not use the wind energy to best effectiveness? The operation of the compressor in the heat pump and the pumps to run the water loop(s) require electricity, so do common home appliances.

There may be some applications where the proffered idea would make sense, but not likely widely applicable for single family residences unless you have a large property and money to burn.

SEPTEMBER 26, 2009 AT 10:44 PM



References:

  1. heat-pump-effective-temperature-range/
  2. wind-turbine-heat-pump-geothermal

Alberta Energy Production And A Renewable Future

Posted on by
5

Author:  Duane M. Tilden, P.Eng  (January 14th, 2016)

Abstract:  Energy sources and pricing are hot topics world-wide with the Climate Change agenda leading the way.  Last year at the 2015 Paris Climate Conference long-term goal of emissions neutrality was established to be by as soon as 2050.  Alberta currently produces more atmospheric carbon emissions and other pollutants than any other Province in Canada, and in order to meet clean air objectives the energy sectors which consume & mine the natural resources of the Province will have to shift to non-polluting & renewable energy sources and be more efficient in energy utilization.  To achieve these goals new infrastructure will have to be built which will have the likely consequences of raising energy pricing as well as alter consumption rates and patterns.

Transportation

Transportation is a vital link in modern society, and often a personal vehicle is chosen as the main mode of mobility to work, leisure, & social purposes.  Cars and trucks also provide means of work and commerce & are essential to our way of life.  Most of these vehicles are fueled by gasoline, some by diesel, propane, and more recently the electric vehicle (EV) and hybrids.



GraphData Gas Price Comparison Canada

Graph #1:  Average Cost Comparison of Gasoline in Major Canadian Cities

In Alberta, using Calgary as a basis for comparison, it is apparent that pricing to consumers for gasoline is below nation-wide market averages when measured Province by Province, as demonstrated in Graph #1 (1). While if you live in Vancouver the cost is considerably higher, due to included carbon taxes and a transit levy among additional charges.  Additional means of moving growing populations efficiently have been seen by the development of LRT mass transit for the rapid movement of citizens to work, school, or social events.

Rapidly moving the large segments of the population in a cost effective manner is important to growth.  Buses are an important link in this mix as are cycling routes, green-ways and parks.  Changes in fuels for trucks, buses and trains by converting from diesel fuel to LNG will also provide for reductions in emissions while providing economic opportunity for utilization of the existing plentiful resource.  While EV’s show promise, the battery technologies for energy storage need further development.

Alberta Electricity Production

Alberta still relies on out-dated coal plants to generate electricity.  According to a CBC article coal provides power to 55% of homes in Alberta, and is the second largest contributor to emissions (2) and GHG’s to the Oil Sands projects.  However, it has been noted that the utility is reluctant to decommission recently constructed coal plants, until they have earned back (or are compensated for) their investment in capital costs.

local-input-wabamun-alberta-march-21-2014-a-giant-drag1

Photo #1:  Highvale coal mine to feed the nearby Sundance power plant (3)

Photo credit:  John Lucas / Edmonton Journal

There are power purchase agreements in place, which may extend 50 to 60 years from the construction date of the plant (2).  It may be possible that the coal fired power plants could be converted to burn natural gas, which Alberta has in abundance, rather than be decommissioned.  However, this would still require the closure of the coal mines and mining operations currently supplying the existing power plants.  Also, combustion of natural gas will still release GHG’s into the atmosphere, while less than coal, they are not a total elimination of emissions.

Residential Energy Consumption

When comparing monthly residential electrical energy costs across Canada, using data obtained from a survey performed by Manitoba Hydro, we see that Edmonton and Calgary are in the lower middle range of pricing (4).  Variances in all regions will occur based on average home size, building codes and insulation requirements, heating system types and other factors.  Some homes may be heated with electric baseboard which will result in a higher electric bill while other homes may be heated using natural gas as a fuel.  Also household hot water generation can be by electric or gas-fired heater, so consumption of natural gas must be considered with electrical power usage to get a complete picture of energy consumption.

residential_1000kWhresidential_2000kWh

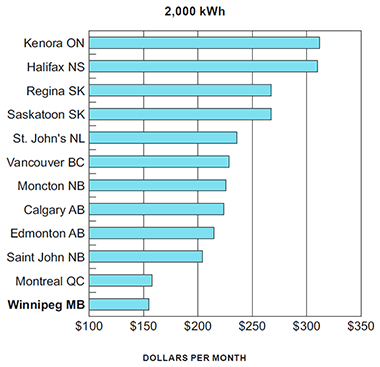

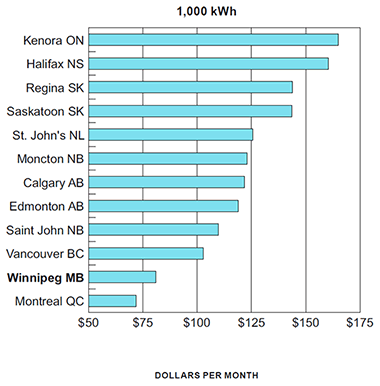

Charts #1 & 2:  Average Monthly Cost For Residential Electricity in Major Canadian Cities For Equivalent Usage in kWh (4)

Inspecting these charts it is proposed that a price increase of 10 to 20% to Alberta electrical energy consumers by a separate tax or fee to pay for a shift in technology would be reasonable when compared to other Canadian Cities.   Additional tariffs on natural gas consumption would also be recommended.  Such an increase would likely have a secondary benefit of creating an incentive for energy efficiency upgrades by home owners such as increased insulation, better windows and heating system upgrades. Such improvements would in turn lead to reduced demand at the source and thus to lower GHG & particulate emissions to the atmosphere.

Climate and the Proposed Energy Code

Energy consumption in populations is normalized in a number of ways, generally defined by habits and patterns.  We observe that in traffic as volumes increase early in the morning as commuters travel to work, and in the opposite direction as they head home in the evening.  Often people will attempt to “beat the traffic”.  This is an admirable goal in energy usage as well, for consumption of electricity will follow other such predictable patterns as people eat meals, shower, and perform other rituals that interface with electrical,  heating,  ventilating, elevators, water supply and disposal systems that form infrastructure and services provided by municipalities and utilities.

As these systems need to be energized and maintained, it is desirable to be able to predict and control the consumption and distribution of resources.  The greater of these is the electrical generation and distribution system.   Also, emerging technological advancements in energy efficiency such as CFL, LCD displays, computers, refrigeration, energy storage and more.  Advancements in co-generation, district energy systems, and other end use distribution of energy which provide economies of scale are also possible as strategies to obtain goals.Heating Degree Days - Lower Western Canada

Map #1:  Partial Map of Heating Degree Days for South-Western Canada (5)

Opportunities will exist for building mechanical system enhancements and upgrades as they may provide energy savings and cost reductions to users often calculated with a minimum nominal payback period of 5 to 7 years (and should be determined in every case).   The HDD map can provide a source of information which is used in energy models to determine predicted building energy costs when calculating payback periods to justify system upgrades or design decisions.  Obtaining and monitoring building energy consumption rates and year over year changes are important resources in determining where systems are running at below optimal rates and require replacement.

In new building construction the National Energy Code for Buildings 2011 (NECB) (6) has been adopted by Alberta (7) for all municipalities.  As there are higher HDD values attributed to Calgary and Edmonton as seen in the HDD Map of Western Canada, a requirement for stringent construction methods and materials to higher standards ensure new buildings meet carbon emissions reduction goals.

026

Photo #2:  Construction of Towers in Calgary with High Window to Wall Ratios

Photo Credit: Duane Tilden P.Eng

Increased requirements in glass U-values and shading coefficients, maximum window to wall ratios (WWR) to reduce undesirable solar heat gain and heat losses, energy consumption and improve occupant comfort.  Buildings with excessive glazing are difficult to heat and cool, requiring sophisticated mechanical systems to offset poor performance by the building envelope.

Code mandated higher insulation values & better materials; moisture and heat control of the envelope through better design.  Higher efficiency requirements for mechanical systems; (fans & ducts, pumps & pipes, and wires & motors), lighting, controls, and other components of the building and it’s envelope.  Energy modeling should be performed of larger significant buildings to optimize operations in the design phase.  Commissioning of the building is integral to ensuring compliance throughout the project to it’s final phases at substantial completion and occupancy.

Renewable Energy

Renewable energy technologies including solar power and wind generation  have been gaining rapid adoption elsewhere in the world, while in Alberta (8) carbon based fuels currently provide over 80% of electrical power generation.   This has not been for a lack of wind and solar resources in Alberta but to be attributed to the large capital investments in fossil fuel resource extraction.  Other renewable technologies such as bio-mass, hydro, and geothermal may also be employed and should be investigated as alternatives to existing thermo-electric power plants.

Alberta Energy Sources - 2015

Table #1:  Installed Electrical Generating Capacity by Fuel Source in Alberta (8)

Currently, Alberta has the third highest installed wind power capacity in Canada behind Ontario and Quebec.  Wind energy not only represents a means to green the power production, it also will contribute jobs and income to the economy.  As one source of electricity and revenues is removed another source will fill the void.

installed_capacity_e-4

Map #2:  Installed Wind Power Capacity by Province in Canada (9)

While significant inroads have been made in Alberta for wind power which is already established as a major power source for the future, there is unrealized potential for the installation of solar power production.  It has been noted that a photo-voltaic installation in Calgary is 52% more efficient than one installed in Berlin, Germany.  Meanwhile, Germany has 18,000 times more solar power generation capacity than installed in Alberta (10).

alberta-germanytiltweb

Map #4:  Solar Resource Comparison for Alberta & Germany (10)

Alberta has significant solar resources, even during the winter when daylight hours are shorter. Lower temperatures improve PV efficiency, and properly tilted south facing panels optimize light capture, while the flat terrain of the prairies provide unobstructed maximum daylight.  Light reflection by snow on the ground would further enhance light intensity during the colder months.  Thus solar represents a relatively untapped potential source of significant electrical power for Alberta and an unrealized economic opportunity for consumers and industry.

hotspots_13

hotspots_leg

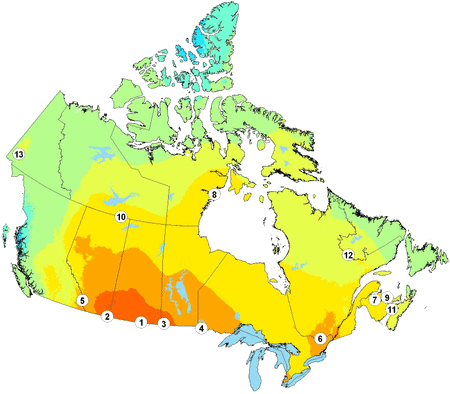

Map #5:  Solar Resource Map for Canada With Hotspots (11)

Energy Efficiency, Smart Grid & Technological Advancements

Renewable energy produces electricity from natural resources without generating carbon and particulate emissions.  Another method of controlling emissions is to reduce the amount of energy consumed by being more efficient with the energy we already produce.   We can achieve this by using higher efficiency equipment, changing consumer patterns of use to non-peak periods, use of Smart Meter’s to monitor consumer usage and to alert homeowners when there is a problem with high consumption which could result in higher bills than normal if the problem remained unreported.

There are other advancements in the electrical grid system which are on the horizon which will enable a utility maximize resources by such means as energy storage, micro-grids, demand response to name a few.  Also, property owners and businesses could be able to grid-tie private solar panel (PV) and storage systems to supplement the utilities electrical system with additional power during the day.

Summary

In order to meet the goal of atmospheric emissions neutrality as agreed to at the 2015 Paris Climate Conference Alberta is posed with making decisions on how electricity is to be produced in the future.  Eliminating coal power plants and replacing them with Renewable Energy power sources such as solar and wind power are proven methods to reducing GHG and particulate emissions as these power sources do not involve combustion and discharge of waste gases formed during the combustion process.  Coal combustion is well documented as a major contributor of GHG’s to the atmosphere.

To make the transition will require capital for financing to build new infrastructure.  Funding of these projects should be raised proportionally charged to users with increased rates.  These rate increases will provide further incentives to reducing energy consumption and thus air emissions.  Jobs will shift and employment will be created in new forms as the old is phased out and replaced with new technology.  These new systems will have to be designed, built and maintained while the workforce will require training in new methods.  There will be many new opportunities for growth and advancement resulting from the implementation of these changes to meet Canada’s International commitments.

References:

  1. http://www.nrcan.gc.ca/energy/fuel-prices/4593
  2. http://www.cbc.ca/news/business/coal-compensation-power-alberta-1.3321467
  3. http://edmontonjournal.com/business/local-business/albertas-commitment-to-phase-out-coal-fired-power-sparks-fears-of-job-losses
  4. https://www.hydro.mb.ca/regulatory_affairs/energy_rates/electricity/utility_rate_comp.shtml
  5. http://ftp2.cits.rncan.gc.ca/pub/geott/atlas/archives/english/5thedition/environment/climate/mcr4033.jpg
  6. http://www.nrc-cnrc.gc.ca/eng/publications/codes_centre/necb_2011_adaptation_guidelines.html
  7. http://www.municipalaffairs.alberta.ca/CP_Energy_Codes_Information
  8. http://www.energy.alberta.ca/electricity/682.asp
  9. http://canwea.ca/wind-energy/installed-capacity/
  10. http://www.greenenergyfutures.ca/blog/sunny-days-ahead-solar-alberta
  11. http://pv.nrcan.gc.ca/index.php?lang=e&m=r



Heating and Cooling of Buildings EU Energy Debate

Posted on by
1

The significance of heating and cooling technologies for Europe was again underlined at a major conference on district energy in Brussels. Miquel Arias Caňete, European Commissioner for Climate Action and Energy, was among a number of speakers who addressed the Heating and Cooling in the European Energy Transition Conference last week. Nearly half of Europe’s energy consumption flows into the heating of buildings and industrial processes. Some 15% of this energy is coming from renewables, suc

Source: www.cospp.com

>”[…]

Nearly half of Europe’s energy consumption flows into the heating of buildings and industrial processes. Some 15% of this energy is coming from renewables, such as biomass and solar panels. Around 1 billion Euro per day is needed to pay for fuel imports.

In his opening address, Caňete stressed that heating and cooling is a sector that deserves maximum attention because of its high share in using fossil energy. He referred to the sector as “the missing piece in the energy and emissions debate”.

A large proportion of buildings have poor energy performance and without specific action, he said it will be a long time before the situation improves. In industry, he advocated more synergy is needed between industry and the heating of buildings with waste energy.

“Next to that, electricity and heat supply has to be integrated. In times of excess renewable electricity, it should be used for heating purposes. This is especially the case since heat use in the EU is energy wise about 2.5 times higher than electricity use.  Under European Structural and Investment Funds (ESIF), some €38 billion has now been allocated by Member States for energy efficiency, local renewable energy and local transport.”

Pieter Liese, MEP, said that a EUR1bn payment for energy per day is sent from the EU to countries with a doubtful regime such as Russia, Qatar, Saudi Arabia. He pleaded for a common European policy and approach. He stated that although politicians like to talk about electricity, it is clear that improving heating and cooling processes is a more sensible subject.

According to Ulrich Schmidt, chairman of the European Heating Industry, 75% of Europe’s housing stock are energy inefficient and 65% of gas boilers are old and inefficient while 40 % of homes date back to before 1960.

“Owners of existing equipment are reluctant to replace their appliances since the pay-back time from the benefit of less fuel consumption is too long. Moreover, old-fashioned boilers are considered by consumers to be more reliable than modern ones.”

Ligia Noronha, Director of Technology, Industry and Economics, United Nations Environment Programme (UNEP), stated that energy efficiency is a key component of the EU energy transition. She highlighted the Global District Energy in Cities Initiative. It is an analysis of 45 leading cities. District heating is seen as a major instrument in improving energy utilisation. By 2050, Europe could meet 50% of its heat demand via district heating.

John Dulac from the IEA said that as much heat is thrown away by inefficient processes as what is needed in the EU.

“‘SILO’ thinking is the big problem. The share of cogeneration in electricity production has to increase drastically. Moreover, electricity production and heat/chill production have to be integrated. “

Paul Voss, Managing Director of Euroheat & Power, warned that if the EU failed to integrate its heating and cooling potential and the current trend in emissions reduction continues, only 60% of the overall reduction target will be reached by 2050.

Three workshops were also part of the itinerary of the day, with Professor Hans-Martin Henning, Deputy Director for solar energy systems at the Fraunhofer Institute outlining a vision for the sector for 2050.

He said heat demand in buildings can be reduced from 30% to 50% by 2050 and added that solar thermal heating, biomass and CHP can play a major role in reducing CO2 emissions of buildings.

Henning also showed the audience how storing energy as heat is much cheaper than other ways of storing energy.

“Germany needs 700 GWh of heat storage, 60 GWh of pumped hydro and 24 GWh of batteries. CHP has excellent possibilities of storing heat and is very suitable for balancing renewable electricity,” he said.

“<



See on Scoop.it – Green & Sustainable News

Microsoft Uses Big Data To Manage Buildings and Facilities

Posted on by
1

MicrosoftCampus

“My initial expectation was that we would see the return on investment in terms of driving down our energy costs, and we have seen that,” says Pittenger, to whom Smith reports. “What wasn’t part of my expectations was the gains we would have in operational efficiencies and our abilities to do repairs and maintenance much, much better and much, much smarter.”

Source: www.facilitiesnet.com

Image:  http://news.microsoft.com/2009/11/23/california-coding-microsoft-campus-in-silicon-valley-turns-10/

>” […] Over those 125 buildings on the main Microsoft campus, there are more than 30,000 building systems components — assets, in Smith’s terms — and more than 2 million points where building systems ranging from HVAC to lighting to power monitoring are connected to sensors. In a 24-hour period, those systems produce half a billion data transactions. Each one is small, but when you’re talking about half a billion of something, all those 1s and 0s add up pretty quickly.

But what’s important is being able to do something with those 1s and 0s, which Microsoft could not do until recently because of the mess of systems involved, says Jim Sinopoli, managing principal, Smart Buildings, who helped set up the software pilot program.

“You have an opportunity, if you’re building a new campus or a new building, to really start with a clean slate,” he says. “But you go in these existing buildings and you generally will come upon some unforeseen obstacles.”

The project turned out to be a relatively easy sell. First, Pittenger’s background is financial, so being able to show a strong ROI was a definite plus for Smith, because his boss understands exactly what that means when it comes time to ask for funding. Second, facilities management at Microsoft benefits from a company culture that considers every department to be a key player.

“(CEO) Steve Ballmer likes to say, ‘There are no support organizations at Microsoft,'” Pittenger says. “Everybody is fundamental to the core mission of the company. And we feel that way.”

After gaining approval, the first step was deciding how those obstacles would be overcome. Smith and his team began by writing out 195 requirements for the new way of operating and what their ultimate tool would be able to do. Then they proceeded to look around for an off-the-shelf solution that would be able to do all those things — and failed to find one. So, they built it.

More specifically, they worked with three vendors in a pilot program, encompassing 2.6 million square feet, to build an “analytics blanket” of fault detection algorithms that is layered on top of the different building management systems and reports back to the operations center. If Building 17 and Building 33 have different building management systems, those systems may not be able to talk to each other or provide data to a single reporting system in the operations center. But they can talk to the analytics blanket, which can take the information from every building and combine it into a single output in the operations center. It’s not a replacement for the BMS; instead, it’s adding on functionality that enhances the benefits of the existing BMS.”<

See on Scoop.it – Green Building Operations – Systems & Controls, Maintenance & Commissioning

Net Zero Building Nears Completion in Edmonton

Posted on by
1

the mosaic centre for conscious community and commerce is nearly ready for occupancy, which could make it the most northerly net-zero structure on the planet.

Source: www.journalofcommerce.com

>” […] The Edmonton centre’s designers and builders are hoping that others can learn from the project that sustainable design doesn’t have to be costly or time consuming – so much so that they have made the contract, calculations and drawings available to anyone.

The City of Edmonton said the Mosaic Centre will be the world’s most northerly commercial building to achieve net zero status, the city’s first designated LEED platinum building, the first in Alberta to be petal certified by the Living Building Challenge and Canada’s first triple bottom line commercial building.

Once completed, the new 30,000 square foot building will include  photovoltaic panels that will cover much of the roof.

It will also have LED lighting designed with a time-clock/daylight controller to meet minimum light levels and a geo-exchange system which will draw heat in winter and coolant in summer.

The 32 bore hole geothermal system reduced the size of the system by 40 kW, saving about $150,000.

It was built 25 per cent ahead of schedule and five per cent under budget.

HKA architect Vedran Skopac, who worked on the project, said it was done to prove to the industry that complex, sustainable buildings can be delivered on time, on budget and without animosity between the parties.

He said the key to this all started with using Integrated Project Delivery (IPD).

The model emphasizes collaboration at an early stage and encourages all the participants to use their talents and insights throughout the different stages for best results.

“It goes all the way down to the end of the line of the tradesmen,” Skopac said.

“We invested so much in designing the process, and training and making everyone a leader.”

Skopac said a major influence on designing the actual structure was creating collision spaces, or places where building residents would be forced to meet and interact.

Skopac also wanted to influence sustainable behavior, like making windows easy to operate and open rather than using air conditioning, and making natural light penetrate deep into the building rather than encourage residents to turn on lights. […]”<

See on Scoop.it – Green Building Design – Architecture & Engineering

Hospital Retrofits Heating and Domestic-Hot-Water Systems For Substantial Energy Savings

Posted on by
2

At Holton Community Hospital in rural Holton, Kan., two cast-iron atmospheric boilers and three gas-fired water heaters that had been in place for nearly 20 years were operating inefficiently.

Source: hpac.com

>” […] Based on the boiler-plate outputs and firing rates of the existing boilers and domestic water heaters at design conditions and outputs, three Knight XL heating boilers with inputs of 500,000 Btuh, two 119-gal. Squire indirect water heaters, and a 119-gal. buffer tank were selected. […]

On one of the Knight XL heating boilers, a Grundfos MAGNA3 variable-speed circulator pump was installed. The boiler controls the speed of the pump using the built-in Smart System. When the boiler modulates down, the pump slows to maintain a constant temperature rise across the heat exchanger at all times. Reducing pump revolutions reduces power consumption tremendously.

Monitoring equipment was placed on both the lead boiler and the member boiler not dedicated to domestic water. The lead boiler had the MAGNA3 40-80 F variable-speed circulator pump, while the member boiler used the UPS 43-100 F constant-speed circulator pump.

For analysis, the team compared two similar days, March 20 and 21, at a time when only the two monitored boilers would be running. At that time, domestic water use would be unlikely, reducing the chance the third boiler would fire and affect the measured values.Figure 1 shows the power consumed by the constant-speed circulator and the variable-speed circulator when each was the lead.

Lochinvar Chart2_AMD

FIGURE 1. Pump power consumption.





Pump-speed modulation resulted in significant energy savings. The MAGNA3 reached a maximum power usage of 270 W, but slowed to a minimum of just over 50 W, while the UPS ran at a continuous 365 W. Over the course of the hour, the MAGNA3 averaged 156 W.

With Smart System, the boiler adjusts the flow through its heat exchanger to control delta-T as well as system median temperature. Delta-T across the boiler is constant, resulting in enhanced building comfort, increased heat transfer, and electricity savings.

In January 2014, Holton Community Hospital spent a total of $1,207.31 on gas and electricity. In comparison, the hospital’s gas and electricity bills for January 2013 were $2,805.41—more than twice as much. […]”<

See on Scoop.it – Green Building Operations – Systems & Controls, Maintenance & Commissioning

Minimum Efficiency Standards for Electric Motors to Increase – DOE

Posted on by
2

DOE’s analyses estimate lifetime savings for electric motors purchased over the 30-year period that begins in the year of compliance with new and amended standards (2016-45) to be 7.0 quadrillion British thermal units (Btu). The annualized energy savings—0.23 quadrillion Btu—is equivalent to 1% of total U.S. industrial primary electricity consumption in 2013.

Source: www.eia.gov

>” Nearly half of the electricity consumed in the manufacturing sector is used for powering motors, such as for fans, pumps, conveyors, and compressors. About two thirds of this machine-drive consumption occurs in the bulk chemicals, food, petroleum and coal products, primary metals, and paper industries. For more than three decades the efficiency of new motors has been regulated by federal law. Beginning in mid-2016, an updated standard established this year by the U.S. Department of Energy (DOE) for electric motors will once again increase the minimum efficiency of new motors.

The updated electric motor standards apply the standards currently in place to a wider scope of electric motors, generating significant estimated energy savings. […]

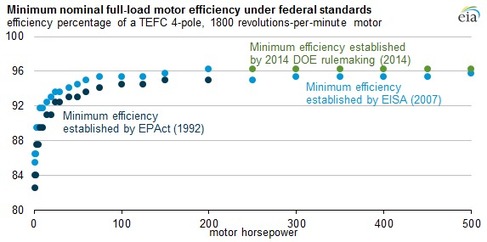

Legislation has increased the federal minimum motor efficiencies requirements over the past two decades, covering motors both manufactured and imported for sale in the United States. The Energy Policy Act of 1992 (EPAct) set minimum efficiency levels for all motors up to 200 horsepower (hp) purchased after October 1997. The U.S. Energy Independence and Security Act (EISA) of 2007 updated the EPAct standards starting December 2010, including 201-500 hp motors. EISA assigns minimum, nominal, full-load efficiency ratings according to motor subtype and size. The Energy Policy and Conservation Act of 1975 also requires DOE to establish the most stringent standards that are both technologically feasible and economically justifiable, and to periodically update these standards as technology and economics evolve.

Motors typically fail every 5 to 15 years, depending on the size of the motor. When they fail they can either be replaced or repaired (rewound). When motors are rewound, their efficiencies typically diminish by a small amount. Large motors tend to be more efficient than small motors, and they tend to be used for more hours during the year. MotorMaster+ and MotorMaster+ International, distributed by the U.S. Department of Energy and developed by the Washington State University Cooperative Extension Energy Program in conjunction with the Bonneville Power Administration, are sources for cost and performance data on replacing and rewinding motors.

Improving the efficiency of motor systems, rather than just improving the efficiency of individual motors, may hold greater potential for savings in machine-drive electricity consumption. Analysis from the U.S. Department of Energy shows that more than 70% of the total potential motor system energy savings is estimated to be available through system improvements by reducing system load requirements, reducing or controlling motor speed, matching component sizes to the load, upgrading component efficiency, implementing better maintenance practices, and downsizing the motor when possible.”<



See on Scoop.it – Green Energy Technologies & Development

Energy Efficiency in Buildings – How VFD’s Save Energy

Posted on by
1

Have you wondered why Pumps and Fans are such a great opportunity to save energy using variable speed drives? ABB can help you estimate your energy savings a…

Source: www.youtube.com

>”  Efficiencies of Motors and Drives

The full load efficiency of AC electric motors range from around 80% for the smallest motors to over 95% for motors over 100 HP. The efficiency of an electric motor drops significantly as the load is reduced below 40%. Good practice dictates that motors should be sized so that full load operation corresponds to 75% of the rated power of the motor. […]

The efficiency of an electric motor and drive system is the ratio of mechanical output power to electrical input power and is most often expressed as a percentage.

Motor System Efficiency =Output MechanicalInput Electrical x 100%

A VFD is very efficient. Typical efficiencies of 97% or more are available at full load. At reduced loads the efficiency drops. Typically, VFDs over 10 HP have over 90% efficiency for loads greater than 25% of full load. This is the operating range of interest for practical applications. […]

The system efficiency is lower than the product of motor efficiency and VFD efficiency because the motor efficiency varies with load and because of the effects of harmonics on the motor.

Unfortunately, it is nearly impossible to know what the motor/ drive system efficiency will be, but because the power input to a variable torque system drops so remarkably with speed, an estimate of the system efficiencies is really all that is needed.

When calculating the energy consumption of a motor drive system, estimated system efficiency in the range of 80-90 % can be used with motors ranging from 10 HP and larger and loads of 25% and greater.

In general, lower efficiency ranges correspond to small motor sizes and loads and higher efficiency ranges corresponds to larger motors and loads.

b. Comparison with Conventional Control Methods

Estimating Energy Savings

Fans and pumps are designed to be capable of meeting the maximum demand of the system in which they are installed.

However, quite often the actual demand could vary and be much less than the designed capacity. These conditions are accommodated by adding outlet dampers to fans or throttling valves to pumps.

These are effective and simple controls, but severely affect the efficiency of the system.

Using a VFD to control the fan or pump is a more efficient means of flow control than simple valves or inlet or outlet dampers. The power input to fans and pumps varies with the cube of the speed, so even seemingly small changes in speed can greatly impact the power required by the load. […]

In addition to major energy savings potential, a drive also offers built-in power factor correction, better process control and motor protection. […]”<*

* Extracted from:  http://www.nrcan.gc.ca/energy/products/reference/15385

See on Scoop.it – Green Building Design – Architecture & Engineering

Building Recommissioning: Recertifying To LEED Platinum EB+OM

Posted on by
Reply

The facilities management director for Armstrong World Industries shares insights into the company’s LEED Platinum recertification pursuit.

Source: facilityexecutive.com

>” […] Q: When the LEED recertification process began for the Armstrong Headquarters facility (Building 701), how did you and the rest of the team begin evaluating the status of the building, in terms of its readiness to be re-certified?

A: Since our initial certification in 2007, we had established specific policies/procedures to follow for the building.  We had these in place so it was more a matter of reviewing what information was needed and fine tuning some of our data processes.  We continue to utilize our building automation system (Johnson Controls Metasys) for controlling all of our building systems and collect much of our operational data through that system. During our performance period, we read our data points on a more frequent basis to understand if systems were operating as designed. If readings were off, metrics signaled a physical change to be made to improve operations and data.

One surprise to our team was our Energy Star score.  We realized we had some searching to do when we saw that our building score had dropped below the 90’s where it had been in 2012. However, to recertify and meet the prerequisite for the E&A category, our Energy Score needed to be 70, and we met that.

In short, our recommissioning process helped us pinpoint many opportunities for improving building operations.

Q: For the recertification, which systems or strategies were newly introduced to the facility?

A: As a building owner, you are always thinking about improving building operations along with budgeting dollars to make the changes. Items that were budgeted for 2014 that were included in our building recertification included: a new roof with an SRI (Solar Reflectance Index) of 78; LED lamp replacements in the lobby; and electrical sub-meters for building lighting.

One other item that was completed in 2010 after electrical deregulation was daylight housekeeping. We traditionally did our housekeeping from 5 pm to midnight. However, as we reviewed our electrical costs and determined a savings opportunity, we moved to daytime hours for cleaning. This saved Building 701 approximately $750 weekly in energy costs. We implemented daylight housekeeping across the entire corporate campus, saving the company $150,000 annually in energy costs.

Q: What is the most challenging aspect of running a LEED Platinum facility? And what is most rewarding?

A: The most challenging aspect of operating and maintaining a LEED- EBOM facility is making sure you have qualified and trained technicians to understand and manage the building operations.

The most rewarding aspect is meeting with customers and guests to discuss the sustainable characteristics of the building and thinking about what to budget for in the upcoming year to improve overall building operations and maintenance to reduce costs. […] “<

See on Scoop.it – Green Building Operations – Systems & Controls, Maintenance & Commissioning
